Description
SALIENT FEATURES

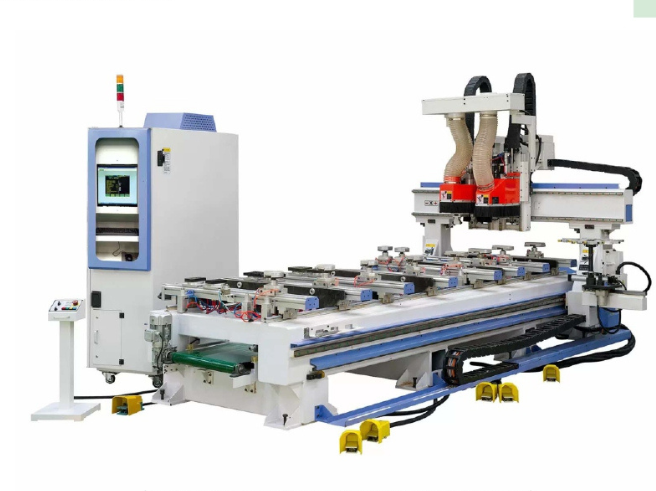

The Machine is used for furniture industries, doors, cabinets,and other furniture.
Technical Specifications
| DESCRIPTION | ADVANTAGE |
|---|---|
| Table Size | 1250 x 3250 x 200mm |
| Table Surface | PTP Table (5pcs, 3caps each table) |
| Spindle Type |
12KW CC Tool Changer Spindle with saw blade |
| Spindle Speed | 0-18000 RPM |
| Drive System | Leadshine 1.5kw Servo Motor |
| Operating System | Weihong NC60A System |
| Maximum Speed | 80/75/30 mm/min |
| Tool Holder Type | Rotary Servo AT |
| Air Consumption | 600 L/Min |
| Machine Size Approx | 5100 x 3100 x 2700m |
| Vacuum Pump | 11KW Two Stage vacuum Pump |
| Weight Approx | 4800 Kgs. |
| Working Voltage | AC 415V/50HZ, 3PH |
