Description

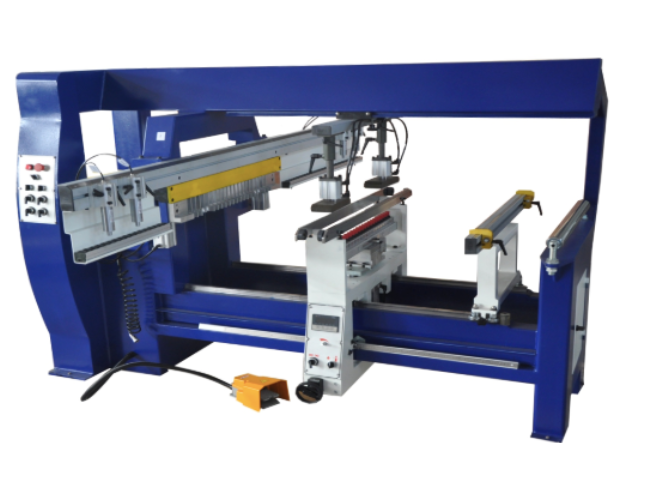

SALIENT FEATURES
- Quick change adaptors are provided on the drilling spindles.
- Sturdily built heavy duty machine made from thick walled steel frame.
- Adequate and effective Pneumatic clamps are provided.
- Pneumatic lock is provided for vertical head
- The aluminum fence has 4 reference steps for positing to do drilling on long work pieces
- Vertical head can be swiveled 90°
- Electronic digital counter for adjusting Length
TECHNICAL SPECIFICATIONS
| DESCRIPTION | DUPLEX |
|---|---|
| Max. Drilling Dia For Single Drill | 35mm |
| Max. Drilling Dia For Multi Drills | 13mm |
| Max. Drilling depth | 50mm |
| Distance between spindles | 32mm |
| Number of spindles per head | 21nos |
| Motors power | 2×1.5KW |
| Speed of spindles | 2840rpm |
| Pressure of compressed air | 6kg/cm² |
| Weight (Approx) | 800kgs |
TECHNICAL SPECIFICATIONS
| MODEL | 1325TC |
|---|---|
| Table Size |
1300 X 2500mm |
| X,Y,Z Working Area |
1300 x 2500 x 200mm |
| Table Surface |
Vacuum table |
| X,Y, Movement |
Rack & Pinion, Linear Bearings |
| Z Movement |
Ball Screw, Linear Bearings |
| Tool magazine |
Linear Type with 12 Tool holders |
| Spindle Type |
ATC 9 kw air cooled spindle |
| Spindle Speed |
0-18000 RPM |
| Drive System (With Gear Speed Reducer) |
“Leadshine Brand” Servo Motor & Drive |
| Power of servo Motor |
1.5 kw each X 4 Nos |
| Command Language |
G- Code |
| Operating System (Controller) |
Weihong |
| Vacuum Pump |
7.5 Kw air cooled |
| Software Compatibility |
(Type 3 Software, Option: Art cam Pro) |
| Working Voltage |
AC 415V/50HZ, 3PH |
| Dimensions(Approx) |
L=3600,W= 2200,H=2200 |
